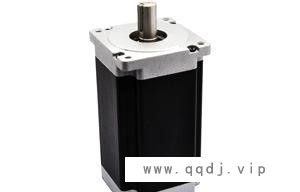

供应57三相步进电机，86步进电机系列57/86三相步进电机

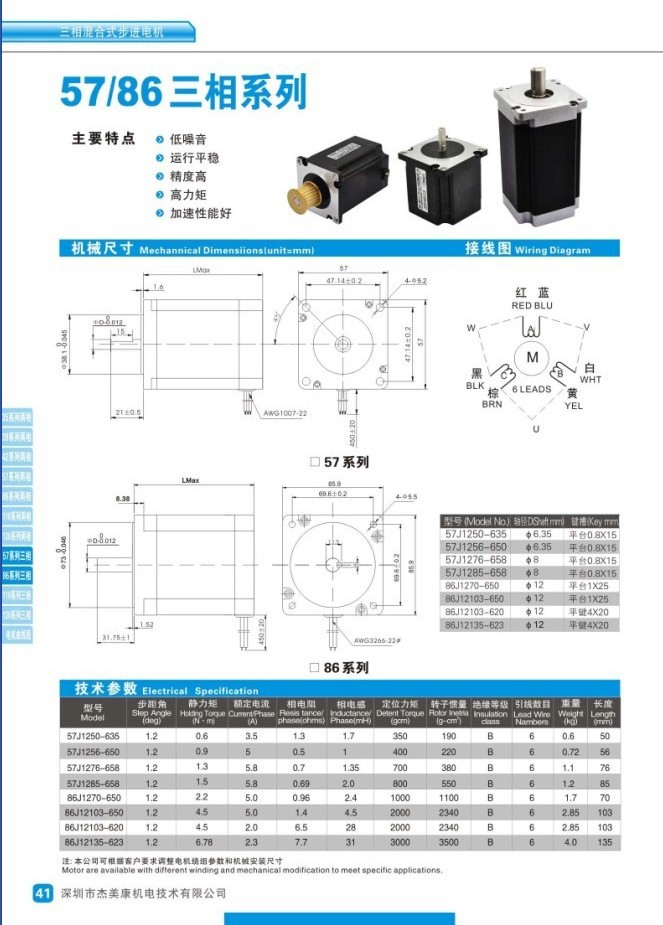

技术参数 Electrical Specification
| 型号 | 步距角 | 静力矩 | 额定电流 | 相电阻 | 相电感 | 定位力矩 | 转子惯量 | 绝缘等级 | 引线数目 | 重量 | 长度 |
| 57J1250-635 | 1.2 | 0.6 | 3.5 | 1.3 | 1.7 | 350 | 190 | B | 6 | 0.6 | 50 |
| 57J1256-650 | 1.2 | 0.9 | 5 | 0.5 | 1 | 400 | 220 | B | 6 | 0.72 | 56 |
| 57J1276-658 | 1.2 | 1.3 | 5.8 | 0.7 | 1.35 | 700 | 380 | B | 6 | 1.1 | 76 |
| 57J1285-658 | 1.2 | 1.5 | 5.8 | 0.69 | 2.0 | 800 | 550 | B | 6 | 1.2 | 85 |
| 86J1270-650 | 1.2 | 2.2 | 5.0 | 0.96 | 2.4 | 1000 | 1100 | B | 6 | 1.7 | 70 |
| 86J12103-650 | 1.2 | 4.5 | 5.0 | 1.4 | 4.5 | 2000 | 2340 | B | 6 | 2.85 | 103 |
| 86J12103-620 | 1.2 | 4.5 | 2.0 | 6.5 | 28 | 2000 | 2340 | B | 6 | 2.85 | 103 |
| 86J12135 | 1.2 | 6.78 | 2.3 | 7.7 | 31 | 3000 | 3500 | B | 6 | 4.0 | 135 |
注：本公司可根据客户要求调整电机绕组参数和机械安装尺寸
Motor are **ailable with winding and mechanical modification to meet specific applicati***.
