品牌:其他
起订:1

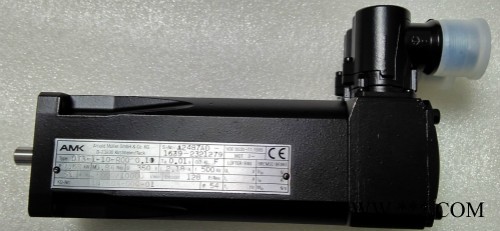

AMK 伺服电机DT3-1-10-ROO-9000-B5
产品简介
• Very high static torques relative to theaxis height • High torque and power densities • High overload capacity
详细资料
The DT high torque motor series provides aninnovative concept for highly dynamic applications. With a high pole count andoptimized lamination geometry, these motors achieve an excellent power densityand a system-efficient torque. With this motor series you receive a compactdrive that is particularly well-suited for applications with a high cyclefrequency. The motors are available in convection-cooled and liquid-cooledversions.
Developed with high reliability, highdynamic response, compact dimensions, and largely maintenance-free operation inmind, this series with its high overload capacity is ideal for peak loads.
Applications
· bbbbbbbbing and actuating drives fordrive tasks with or without gearbox
· For intermittent operation
· Variable-speed drive for continuousrunning
Connecting cable:
Copper conductor nominal cross-section 1.5mm2
Power connector size 1

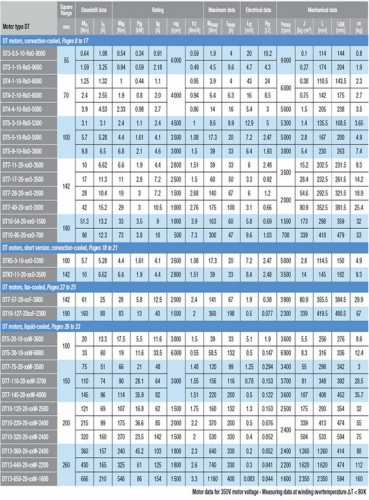

技术参数：
