品牌:民熔电气
产地:河北
起订:1

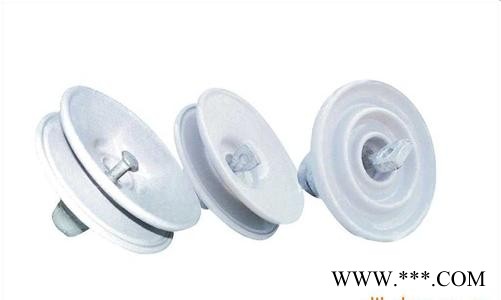

防污瓷瓶XWP1-160
防污瓷瓶XWP1-160
联系人：齐军（18713627780）
河北高亚电力器材有限公司！
产品参数：
| 产品型号 | 图号 | 公称结构高度 H
mm | 公称盘径 D
mm | 公称爬电距离 L
mm | 连接型式标记 | 额定机电破坏负荷
kN | 逐个拉伸负荷
kN | 打击破坏负荷
N·cm | 工频耐受电压 kV | 雷电冲击干耐受电压
kV | 工频击穿电压
kV | 无线电干扰电压 | 重量
kg | |||
| GB/T7253 -2005 新型号 | GB/T7253 -1987 国内通用型号 |
|
|
|
|
|
|
|
| 干 | 湿 |
|
| 对地试验电压
kV | 1MHz最大无线电干扰电压
μV |
|
| U40C/140 | XP-40C | 1 | 140 | 190 | 200 | 16C | 40 | 20 | 565 | 55 | 30 | 75 | 90 | 7.5 | 50 | 2.9 |
| U40CN/150 | XP-40T | 2 | 150 | 190 | 200 | 16C | 40 | 20 | 565 | 55 | 30 | 75 | 90 | 7.5 | 50 | 3.4 |
| U70B/146 | XP-70 | 3 | 146 | 255 | 295 | 16B | 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 4.8 |
| U70C/146 | XP-70C | 1 | 146 | 255 | 295 | 16C | 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 4.7 |
| U70CN/146 U70CN/170 | XP-70T | 2 | 146/ 170 | 255 | 295 | 16C | 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 4.6 |
| U70B/127 | XP1-70 | 3 | 127 | 255 | 295 | 16B | 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 4.6 |
| U70B/146 | XP2-70 | 3 | 146 | 200 | 210 | 16B | 70 | 35 | 565 | 50 | 30 | 100 | 110 | 10 | 50 | 3.7 |
|
| XP3-70 | 4 | 146 | 255 | 310 | 16B | 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 4.9 |
| U70C/146 | XP3-70C | 5 | 146 | 255 | 310 | 16C | 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 5.1 |
| U70B/146 | XP4-70 | 4 | 146 | 270 | 330 | 16B | 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 5.1 |
| U100B/146 | XP-100 | 6 | 146 | 255 | 295 | 16B | 100 | 50 | 678 | 70 | 40 | 100 | 110 | 10 | 50 | 5.8 |
|
| XP2-100 | 6 | 146 | 255 | 340 | 16B | 100 | 50 | 678 | 70 | 40 | 100 | 120 | 10 | 50 | 6.1 |
| U100C/146 | XP-100C | 5 | 146 | 255 | 295 | 16C | 100 | 50 | 678 | 70 | 40 | 100 | 110 | 10 | 50 | 5.8 |
| U120B/146 | XP-120 | 6 | 146 | 255 | 295 | 16B | 120 | 60 | 678 | 70 | 40 | 100 | 110 | 10 | 50 | 6.1 |
|
| XP1-120 | 6 | 146 | 255 | 320 | 16B | 120 | 60 | 678 | 70 | 40 | 100 | 120 | 10 | 50 | 6.6 |
| U160B/155 | XP-160 | 6 | 155 | 255 | 305 | 20 | 160 | 80 | 1017 | 70 | 40 | 100 | 110 | 10 | 50 | 6.8 |
| U160B/146 | XP1-160 | 6 | 146 | 255 | 305 | 20 | 160 | 80 | 1017 | 70 | 40 | 100 | 110 | 10 | 50 | 6.8 |
|
| XP2-160 | 6 | 146 | 280 | 330 | 20 | 160 | 80 | 1017 | 75 | 42 | 105 | 110 | 10 | 50 | 7.6 |
| U210B/170 | XP-210 | 7 | 170 | 280 | 335 | 24 | 210 | 105 | 1017 | 75 | 42 | 105 | 120 | 10 | 50 | 9.8 |
|
| XP1-210 | 7 | 170 | 280 | 335 | 20 | 210 | 105 | 1017 | 75 | 42 | 105 | 120 | 10 | 50 | 9.4 |
|
| XP4-210 | 7 | 170 | 280 | 380 | 20/24 | 210 | 105 | 1017 | 75 | 42 | 105 | 120 | 10 | 50 | 9.8 |
| U240B/170 | XP-240 | 7 | 170 | 280 | 405 | 24 | 240 | 120 | 1017 | 75 | 45 | 110 | 120 | 10 | 50 | 11.4 |
| U300B/195 | XP-300 | 7 | 195 | 320 | 370 | 24 | 300 | 150 | 1017 | 75 | 45 | 110 | 120 | 10 | 50 | 13.5 |
