品牌:deublin
起订:1个
供应:5个
发送询价
| 材质 : | 碳钢 | 加工定制 : | 否 |
| 品牌 : | deublin | 耐温 : | 80（℃） |
| 适用范围 : | Thin-layer technology,Photovoltaics,Modular Proc | 耐压 : | 0.8（MPa） |
| 接管口径 : | 12（mm） | 型号 : | SP0231 |

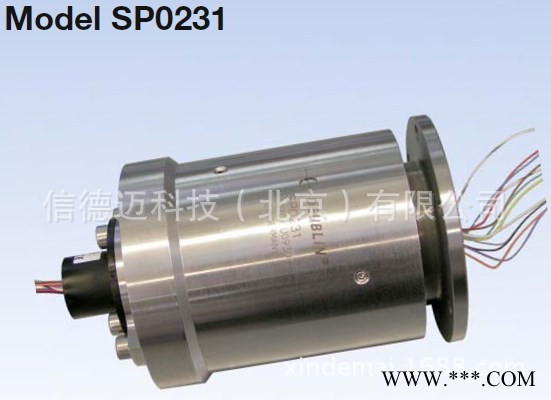

Deublin 导电滑环SP0231 旋转接头
规格性能参数：
Rotating Union 4-Passages
for Water, gaseous Media and additional
Slip Ring
– compact design
– open central passage for feed-through of electrical wires of a
slip ring with max. 12 pins
– flange version
– combination of different seal technologies
Possible applications:
Thin-layer technology, Photovoltaics, Modular Process Systems
Operating Data
Media Water / Compressed Air / Helium
Max. Speed 100 min-1 100 RPM
Max. Pressure
Water6 bar 87 PSI
Compressed Air3 bar 43.5 PSI
Helium 1 bar 14.5 PSI
Max. Flow
Water/Compressed Air 13 l/min 3.5 GPM
Helium227 Nl/min 8 SCFM
Max. Temperature 80 °C 175 °F
